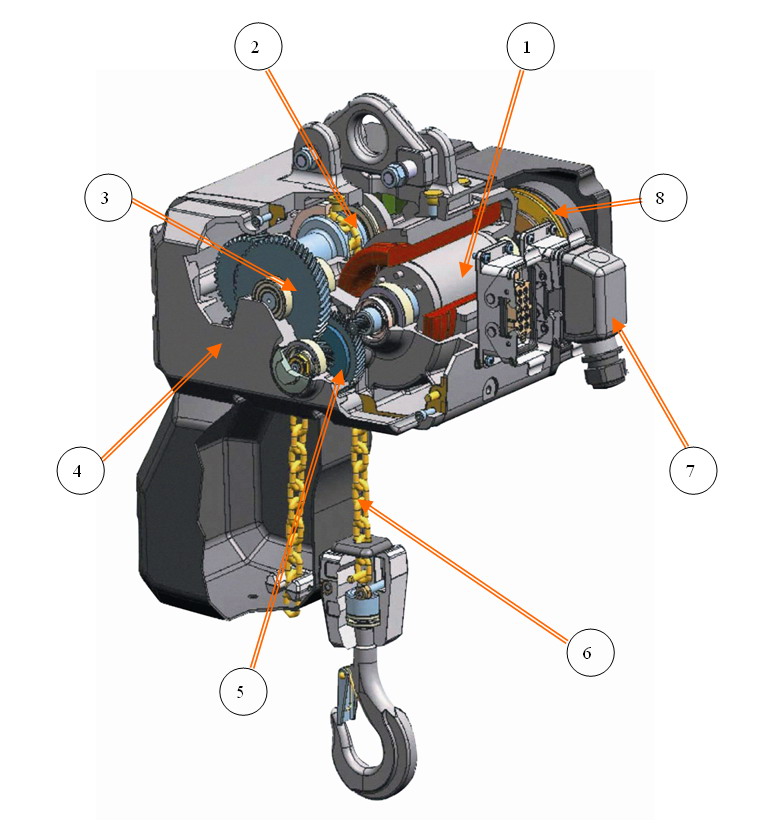

1 lifting motor

Cylindrical rotor two-speed motor, reliable operation, low noise. Standard insulation class is F, IP55 protection level

2 chain guide

On the chain guide is divided into two parts, chain guide to using engineering plastics raw materials, the chain guide to adopt nodular cast iron. In play leading chain function at the same time effectively reduce the wear and tear of the chain.

3 drive mechanism

Triple helical gear transmission, each gear tooth surface hardening and grinding processing, smooth operation, low noise

4 the body shell

Aluminum alloy shell, light weight, corrosion resistance and good heat dissipation performance

Safety clutch

Safety clutch integration on the drive gear shaft, have the effect of overload protection, set to keep the torque for the safe load of 1.4 times

6 the chain

High strength carburizing chain, galvanized surface, safe and durable

7 electrical connector

Standard configuration of aluminium alloy connectors, safe and convenient.

8 brake

Electromagnetic brake disc integration in the end of the lifting motor, nimble and braking torque for 2 times the motor rated torque. Power on the device, the brake will be automatically closed, can prevent the crane load falling accident.
