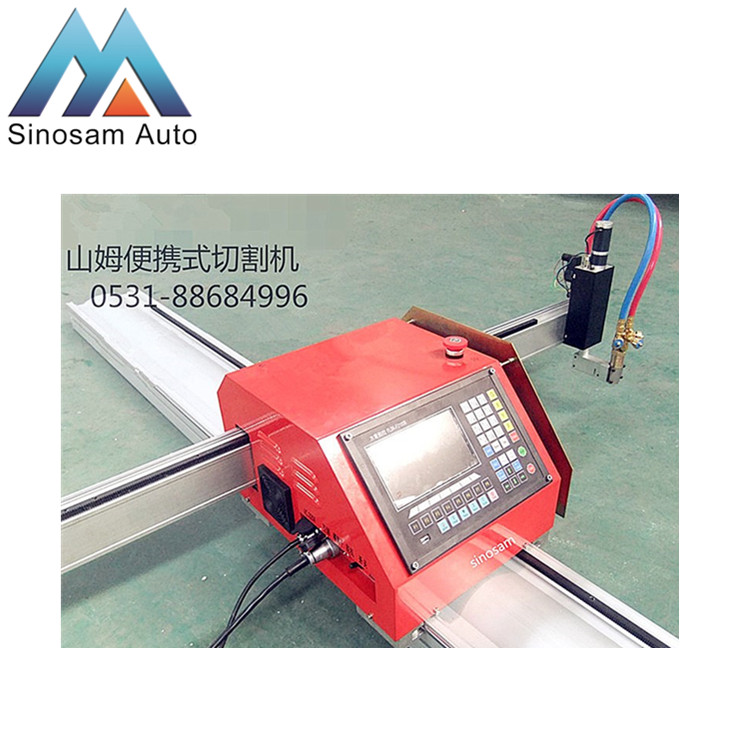

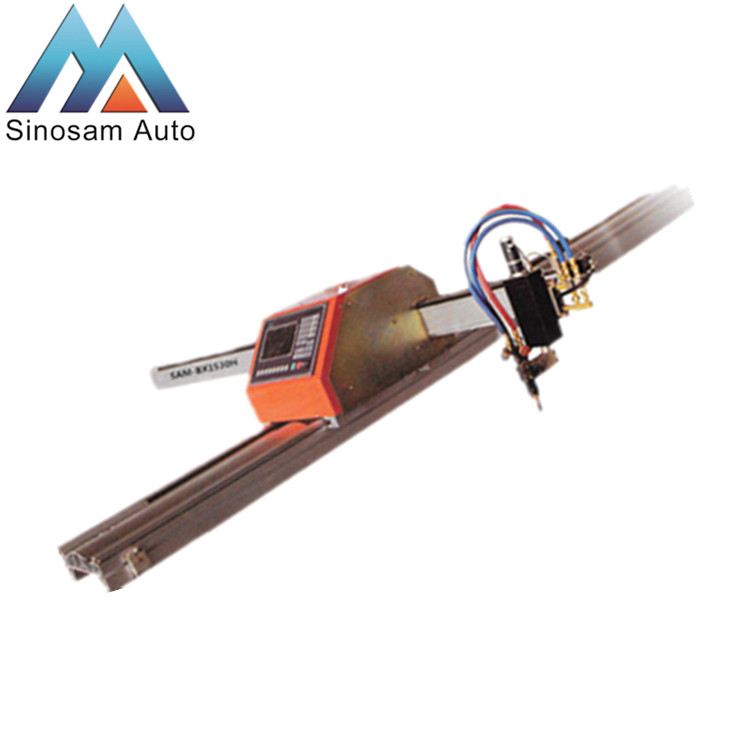

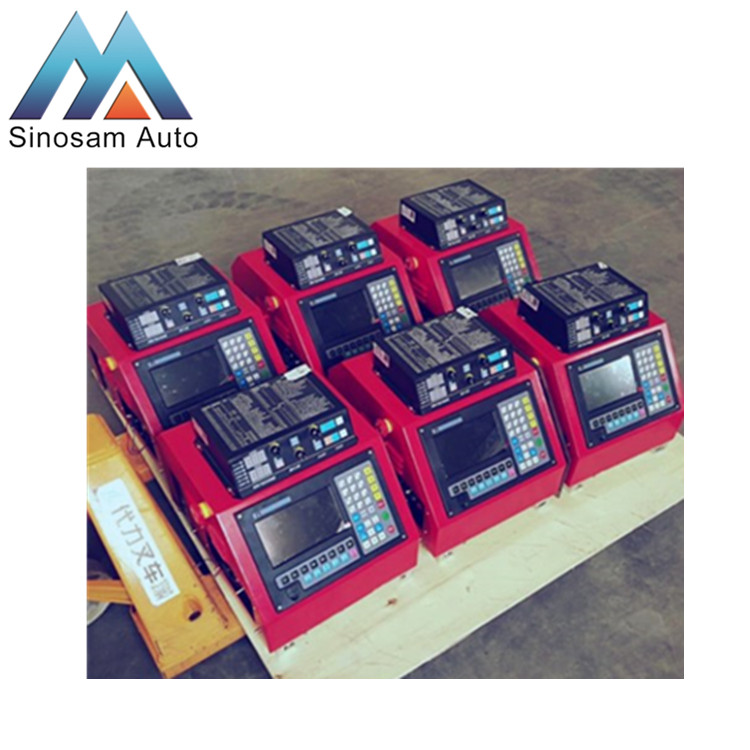

Portable flame cutting machine SC-P1530
- Brand: sinosam
- Type: SC-P1530
- Price: $4300 RMB
- Promotion: $4300 RMB ( 0 Customers Bought)
Portable flame cutting machine SC-P1530
Advantages
1. Beams adopt welding structure with high precision and small inertia. The machine body is with high precision processing to prevent deformation. The support for workpiece is cutting by laser machine.
2. Transmission structure is high precision rack and special reducer, and adopt Taiwan linear rail to ensure high precision and high speed.
3. The drive system adopts USA chip control and high precision motor providing AC power with big torque to ensure running smoothly under the high speed.

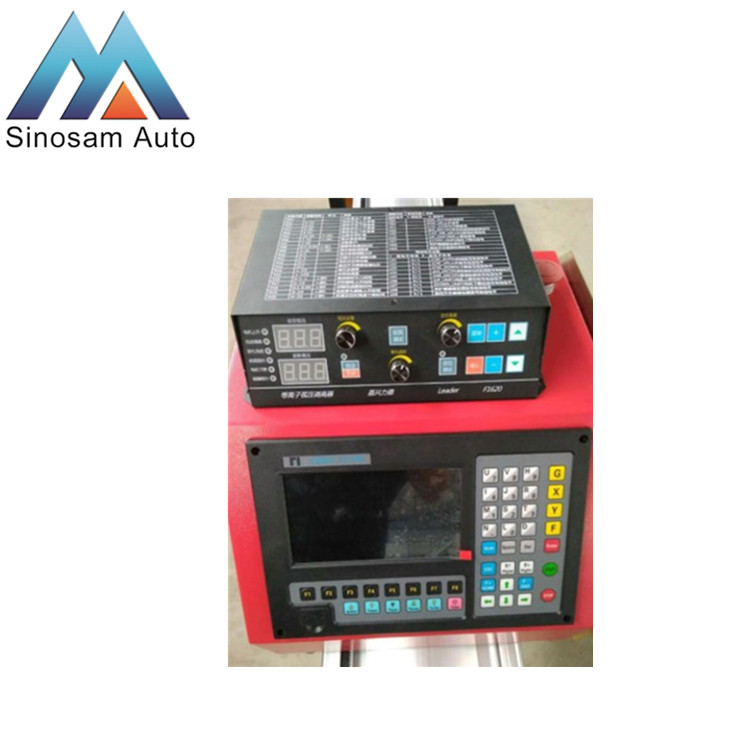

4. The control system is 7’ screen, with English and Chinese language. The machine adopt high precision arc pressure automatic THC.
technical parameters
|
Model |
SC-P1530 |
SC-P1525 |
|
|
Size of X,Y axis |
1530: 2100*3500mm |
1525: 2100*3000mm |
|
|
Lifting travel |
≤100mm |
≤100mm |
|
|
Max travel speed and cutting speed |
18000mm/min 0-15000mm/min |
18000mm/min 0-15000mm/min |
|
|
Running accuracy |
≤0.1mm |
≤0.1mm |
|
|
Height control |
Lifting body |
Lifting body |
|
|
Cutting thickness |
6-200mm |
6-200mm |
|
|
Cutting gas |
Oxygen+ethyne(propane) |
Oxygen+ethyne(propane) |
|
|
Gas pressure |
Gas pressure :0.1Mpa Oxygen pressure :0.1Mpa |
Gas pressure :0.1Mpa Oxygen pressure :0.1Mpa |
|
|
Power |
220V 50HZ |
220V 50HZ |
|
|
Number of cutting torch/nozzle |
One set of flame cutting torch, 10pcs nozzle |
One set of flame cutting torch, 10pcs nozzle |
|
|
Support software |
Starcam, FASTCAM |
Starcam, FASTCAM |
|
Packaging
Our services
1. Free training.
2. Guarantee for 1 year, Lifelong maintenance.
3. Free software support and upgrades.
Company Information
Shandong Sam Automation Equipment Co.,Ltd.located in jinan city, shandong province. Sinosam is a collection research and development, production, sales, services, information consulting, which integrates professional high-tech enterprises.
specialized in the automation of the plant process. The main products are industrial robots, clean robots, intelligent logistics equipment, Agv automatic guided vehicles, rail transit equipment, intelligent service robots, automated assembly testing lines, energy-saving environmental protection equipment, energy equipment and machinery automation etc. Expect your good news.
FAQ
Q: How to install this machine?
A: It is easy to be installed, we have the video for your reference. and we can video online.
Q: What kind of delivery can you support?
A: FOB, CIF. EXW. and so on.
